Reinforced Concrete Pipe Culvert
Solutions for Drainage, Flood Control & Infrastructure Projects
600–1,800mm
Internal diameter
3
Iron cover option
40+
Years in precast
Pipe Culvert Manufacturer in Malaysia
PMW-WB manufactures reinforced concrete pipe culverts in Malaysia for drainage systems, flood control works, road construction, and infrastructure development projects.
Produced using advanced Hanging Rolling Spinning Machine technology — the first of its kind in Sabah, PMW-WB pipe culverts deliver consistent dimensional accuracy, high-density concrete performance, and reduced water permeability compared with conventional production methods.
Available from 600mm to 1,800mm internal diameter, with G40 concrete grade, Rebated Joint (RJ) design, and Class X/L, Y/M and Z/H options, PMW-WB provides reliable precast concrete drainage solutions for contractors, developers, government projects, and infrastructure applications.
Sabah’s First Spinning Technology
G40 Concrete · RJ Joint
600mm – 1,800mm Sizes

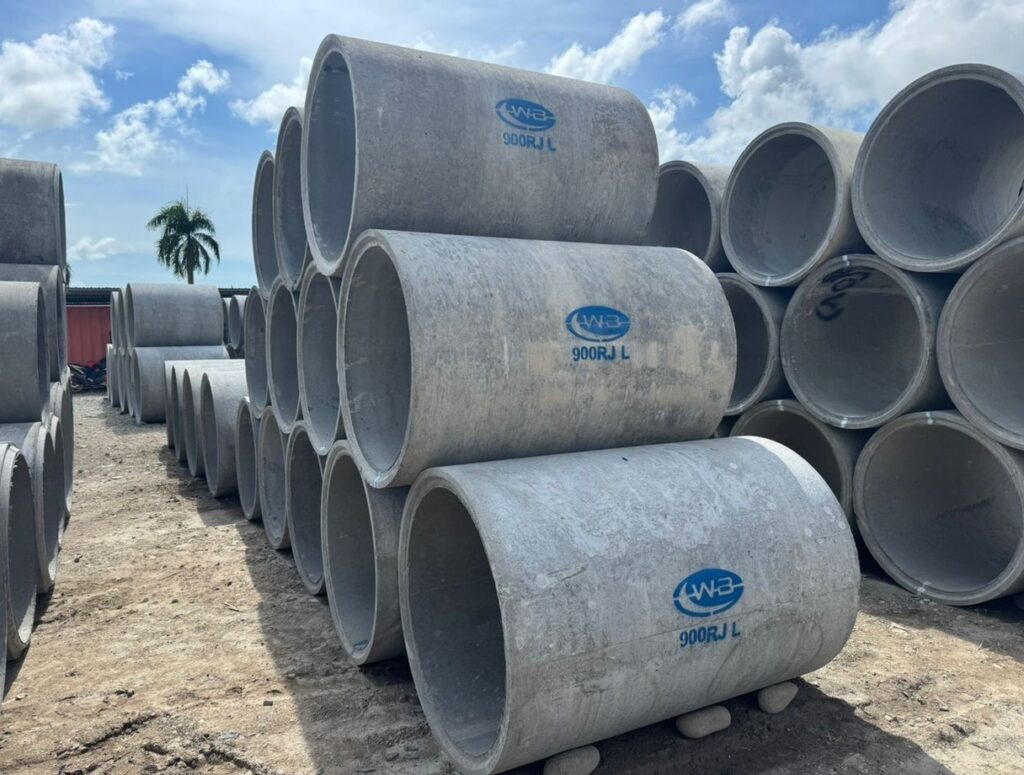

What is a Pipe Culvert?
A pipe culvert is a precast reinforced concrete pipe designed to channel water beneath roads, embankments, and other structures while maintaining the stability and usability of the surrounding land.
Unlike open drainage systems, pipe culverts allow water to flow safely beneath an obstruction while supporting the loads above, making them an essential component in modern infrastructure development.
Reinforced concrete pipe culverts are widely used because of their:
- High structural strength
- Resistance to environmental conditions
- Long service life
- Reliable performance under heavy loading

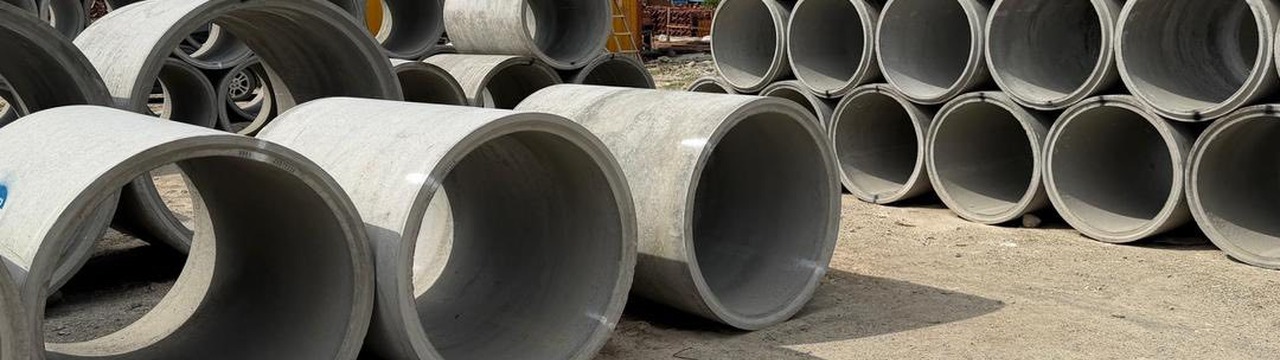

Applications of Pipe Culverts
Drainage Systems
Pipe culverts allow controlled water discharge from one location to another without disturbing surrounding soil conditions.
Common applications include:
- Roadside drainage systems
- Development drainage networks
- Industrial site drainage
- Stormwater management systems
Flood Control
Properly designed culvert systems help maintain natural water flow across a site, reducing the risk of flooding during periods of heavy rainfall.
They are commonly applied in:
- Flood mitigation projects
- Urban developments
- Agricultural and plantation areas
Road & Highway Construction
Pipe culverts are installed beneath road embankments to allow water movement below elevated road structures.
This helps to:
- Prevent water accumulation
- Protect road foundations from saturation
- Reduce soil erosion
- Improve road durability
Applications include:
- Highway construction
- Rural roads
- Access roads
- Infrastructure developments
Sewerage & Utility Applications
The high-density concrete produced through PMW-WB’s spinning technology provides low water permeability performance, making the pipe culverts suitable for applications where durability and water resistance are important.

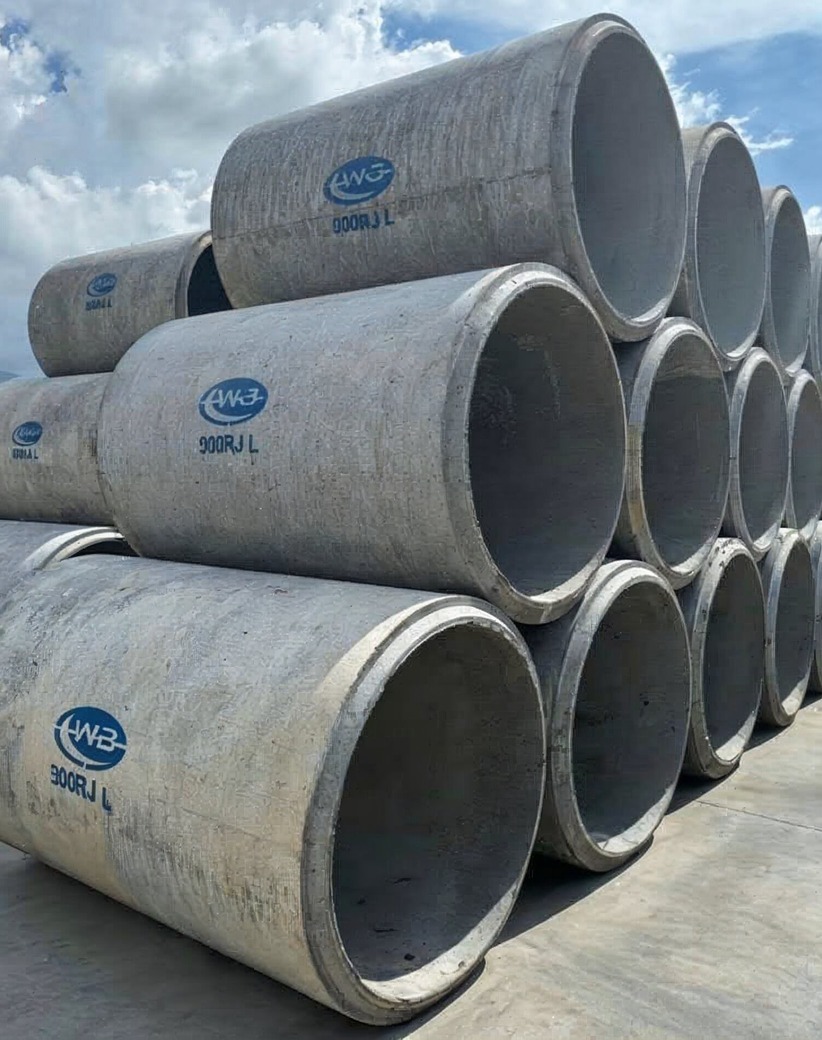

PMW-WB Pipe Culvert Specifications
| Specification | Details |
|---|---|
Product Type | Reinforced Concrete Pipe Culvert |
Internal Diameter | 600mm – 1,800mm |
Available Sizes | 600mm, 750mm, 900mm, 1050mm, 1200mm, 1350mm, 1500mm, 1650mm, 1800mm |
Size Increment | 150mm |
Joint Type | Rebated Joint (RJ) |
Concrete Grade | G40 |
Available Classes | Class X/L, Class Y/M, Class Z/H |
Manufacturing Technology | Hanging Rolling Spinning Machine |
ADVANCED MANUFACTURING TECHNOLOGY
Sabah’s First Hanging Rolling Spinning Machine Technology
PMW-WB utilises advanced Hanging Rolling Spinning Machine technology to manufacture reinforced concrete pipe culverts with improved consistency and production efficiency.
During production, high-speed spinning combined with an internal roller shaft compacts the concrete evenly throughout the pipe structure. This advanced process provides:
01
Accurate Dimensions & Consistent Wall Thickness
The internal roller shaft maintains:
- Consistent pipe wall thickness
- Accurate internal diameter
- Better dimensional control
This ensures the finished product follows required MS SIRIM specifications and supports smoother installation on site.
02
High-Density Concrete Performance
The combination of fast spinning and internal roller compaction:
- Removes trapped air within the concrete
- Improves concrete density
- Reduces water permeability
The result is a stronger and more durable pipe suitable for demanding drainage and sewerage applications.
03
Higher Production Efficiency
Compared with conventional production methods:
- Two pipe culverts can be produced simultaneously
- Production cycles are reduced by 10 minutes or more
- Improved output capacity supports large-volume project requirements
04
Improved Manufacturing Safety
The hanging rolling configuration provides a safer operating environment compared with older production methods by reducing manual handling requirements and improving process control.

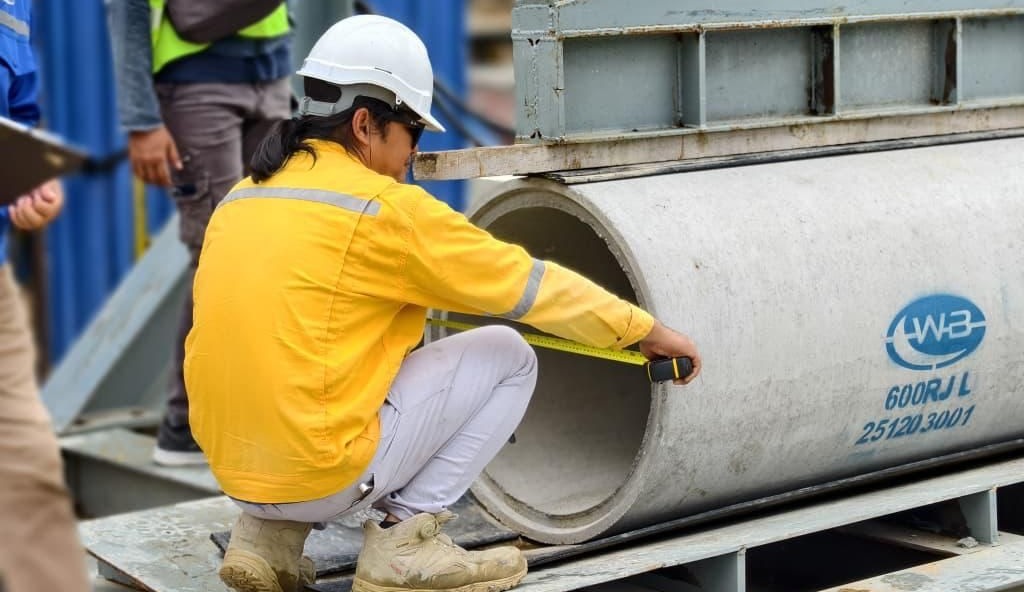

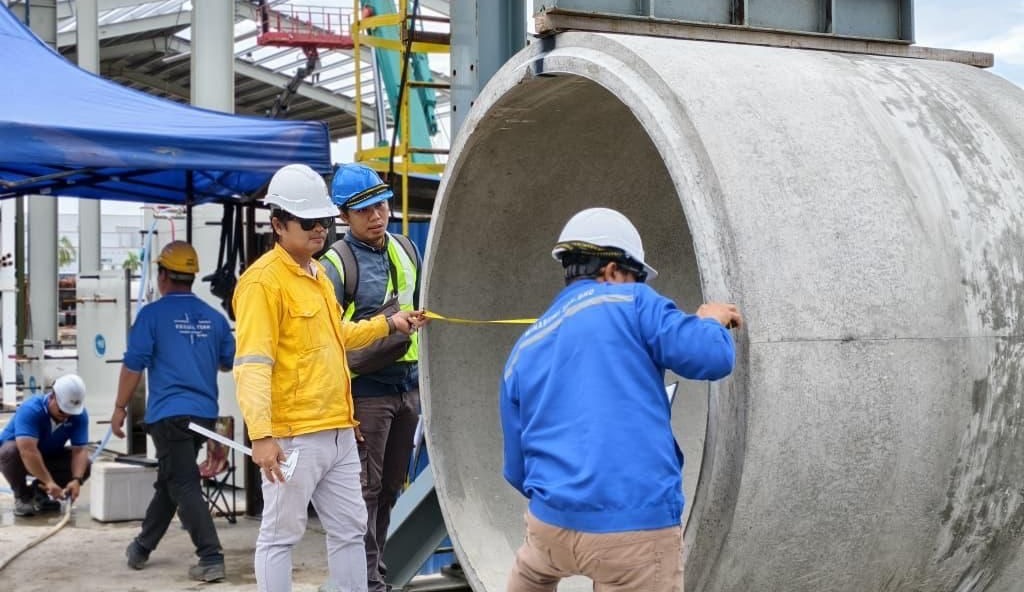

Why Choose PMW-WB Pipe Culverts?
01
Reliable Malaysian Precast Concrete Manufacturer
Backed by PMW International’s decades of experience in concrete manufacturing, PMW-WB delivers dependable infrastructure products engineered for long-term performance.
02
Complete Size Range
With pipe culvert sizes from 600mm to 1,800mm, PMW-WB provides multiple options from one reliable supplier.
03
Suitable Load Class Selection
Available Class X/L, Y/M and Z/H options allow engineers and contractors to select suitable solutions based on cover depth, soil conditions, installation requirements and traffic loading.
04
Sabah-Based Manufacturing Capability
With local production capability in Sabah, PMW-WB supports East Malaysia infrastructure projects with reliable supply and delivery advantages.
Frequently Asked Questions
What sizes of pipe culvert does PMW-WB supply?
PMW-WB manufactures reinforced concrete pipe culverts from 600mm to 1,800mm internal diameter, with 150mm increments between sizes.
What concrete grade is used for PMW-WB pipe culverts?
PMW-WB pipe culverts are manufactured using G40 concrete grade.
What is a Rebated Joint (RJ) pipe culvert?
A Rebated Joint (RJ) pipe culvert uses a stepped profile at the pipe ends, allowing adjoining pipes to align properly during installation and providing a reliable jointing system.
What are Class X, Y and Z pipe culverts?
The classes represent different load-bearing capacities. Selection depends on project requirements such as installation depth, soil conditions and loading requirements.
Can PMW-WB pipe culverts be used for sewerage applications?
Yes. The high-density concrete produced through the spinning and roller compaction process provides reduced water permeability, making it suitable for applications requiring durability and water resistance.
